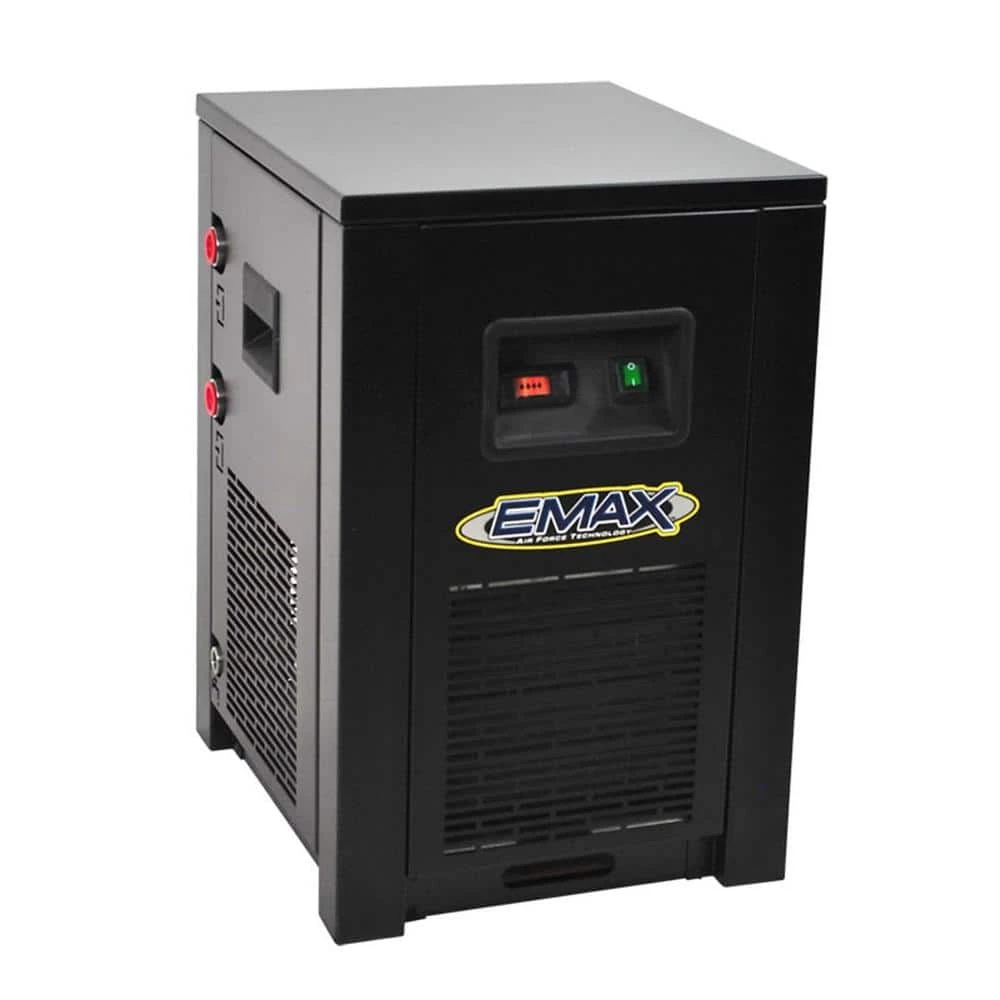

Premium Series 30 CFM Refrigerated Electric Air Dryer by EMAX

Our Premium Series Refrigerated Electric Air Dryers by EMAX are the only energy efficient dryer system with aluminum refrigerated air inner cooler, non-corrosive inner and after cooler. The air Filtered of all solid particles 0.01 micron and larger from the coalescing filter and 0.05 micron from the pre-filter. Clean, Dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with non-corrosive inner and after cooler. Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance. EMAX dryers are UL-CSA approved scroll compressor and electric system for high efficiency durability. They feature adjustable hot bypass for complete dryer function in low and high CFM Flow preventing dryer freeze up. Our air dryers also have built in automatic moisture drains and Built in Coalescing filters to deliver you the driest air possible. We provide a 10 Year warranty on the Heat Exchanger and a 2 year parts warranty.

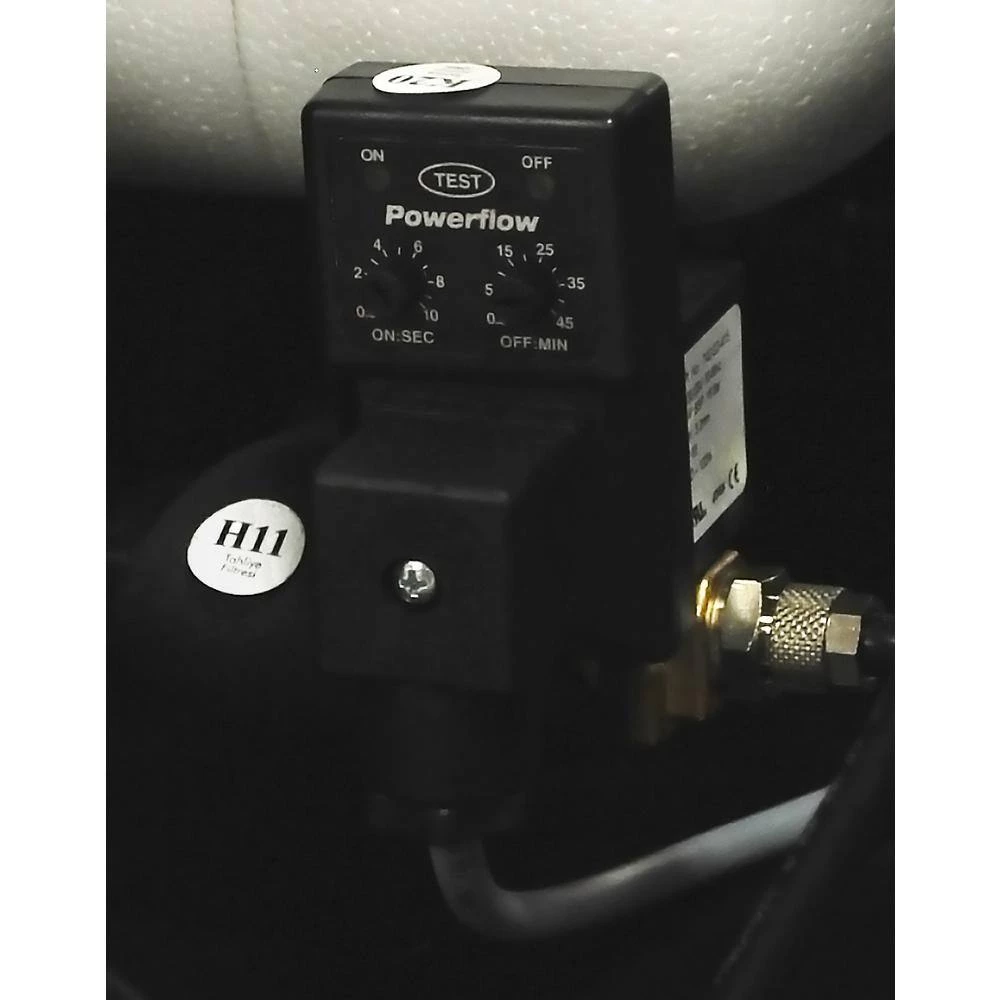

• Automatic moisture drainage system eliminates the need for daily maintenance
• Refrigerant pressure gauge clearly monitors performance
• Outlet air baffle heater prevents condensation on out let air piping
• Heavy-duty steel cabinet
• Purifies compressed air by chilling to condense moisture
• Built in auto drain system – eliminates the need for daily maintenance
• Refrigerant pressure – gauge clearly monitors performance of dew point temp
• Environmentally friendly 134A refrigerant
• Dew point 37-50
• Dryer outlet 1/2 in.
• Max rated inlet temperature of 140°
• Max ambient temperature of 122°
• 115-Volt
